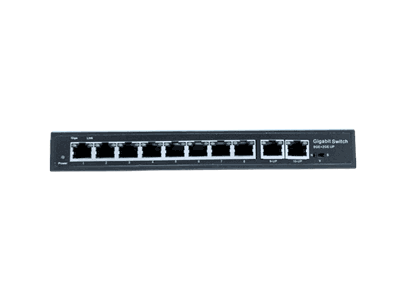

LI-SG8POE-2UP is full Gigabit PoE switch, in which the first port supports BT 90W output, can automatically detect the power-receiving equipment conforming to IEEE802.3af/at PoE++/HiPoE/BT standards to supply power. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and visual intelligent building intercom through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.
PRODUCT FEATURES:
IEEE802.3aflat PoE++/HiPoE/BT,supports the detection function of all-port standards.
PoE budget 120W
Support power supply through PoE devices such as wireless access point(AP)of Category 5 Category 6 Ethernet cable and twork monitoring camera.
Flow control mode:IEEE 802.3x standard is adopted for full duplex and Back pressure standard is adopted for half duplex.
Support automatic port rollover(Auto MDI/MDIX).
Support port lightning protection (secondary lightning protection requirements).
PoE power of single port reaches 30W (the first port can output BT 90W).
- 8-Port 10/100/1000M PoE IEEE802.3af/at (Port1 support IEEE802.3af/at/PoE++/bt Max.90W)
- 2-8port support IEEE802.3af/at Max.30W
- Uplink 2-Port Gigabit RJ45
- 1) 1-8 ports support VLAN
- 2) 1-8 ports support Extend 250meters(10Mbps)
- 3) Support PoE Watchdog
- Internal Power Supply 130W
